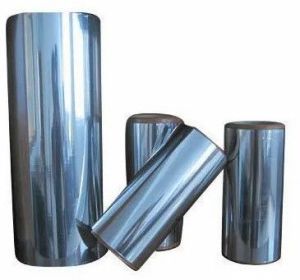

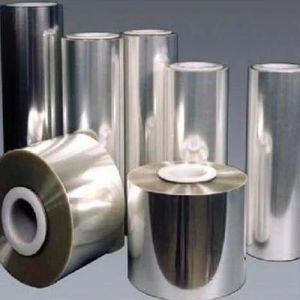

BOPP Metlized Heatseal

Heatseal BOPP (Biaxially Oriented Polypropylene) film is a specialized type of BOPP film designed with excellent heat-sealing properties. It's a highly versatile material widely used in flexible packaging for a variety of products, both food and non-food.

Here's a detailed description:

What is it?

BOPP film is made from polypropylene resin that undergoes a biaxial orientation process, meaning it's stretched in both machine direction (MD) and transverse direction (TD). This stretching aligns the polymer chains, significantly enhancing its mechanical properties, clarity, and barrier characteristics.

While standard BOPP film has good inherent properties, it might not seal effectively with heat. Heatseal BOPP film is specifically engineered to overcome this. It typically features a co-extruded structure with a core layer of BOPP and one or more outer layers (sealant layers) that have a lower melting point. This lower melting point layer is what allows the film to form a strong, secure seal when heat and pressure are applied.

Key Properties and Characteristics:

 * Excellent Heat Sealing: This is its defining characteristic. It forms strong, reliable seals at specific temperatures (typically 110°C to 140°C), ensuring packaging integrity.

 * High Strength and Durability: The biaxial orientation gives it high tensile strength, tear resistance, and puncture resistance, protecting packaged products from damage.

 * Good Barrier Properties: It offers good barriers against moisture, oxygen, and odors, which helps to extend the shelf life of perishable goods.

 * High Transparency and Gloss: Many types of heatseal BOPP film are highly transparent and glossy, enhancing the visual appeal of the packaged product. Matte finishes are also available for a different aesthetic.

 * Printability: It can be easily printed with various printing technologies (e.g., rotogravure, flexographic) to create attractive packaging. Some films are corona-treated on one or both sides to improve ink adhesion.

 * Good Machinability: Designed to run efficiently on high-speed packaging machines, preventing issues like sticking in hot conditions.

 * Low Density: This makes it material-efficient and contributes to a lower carbon footprint.

 * Hygienic and Safe: It's generally non-toxic and suitable for food contact applications.

Types of Heatseal BOPP Film:

Heatseal BOPP films can be categorized based on their sealing characteristics and appearance:

 * Single-sided Heat Sealable: One side is heat-sealable, while the other can be printed and laminated with other materials like PE film or aluminum foil.

 * Double-sided Heat Sealable: Both sides are heat-sealable, offering greater flexibility in packaging design and sealing options.

 * Transparent/Clear: The most common type, offering high clarity for product visibility.

 * Matte: Provides a non-glossy, elegant finish.

 * Cavitated White/Pearlescent: Has a pearlescent or opaque white appearance, often used for products requiring light barrier or a distinct look (e.g., confectionery, ice-cream packaging).

 * Solid Core White: Opaque white film, offering good barrier properties and often used for heavier or frozen food products.

 * **Low SIT (Seal Initiation Temperature) Films: Designed for even faster packaging speeds, as they initiate sealing at lower temperatures.

 * Anti-fog Films: Treated to prevent fogging, especially useful for packaging fresh produce.

Manufacturing Process (General Overview):

The production of heatseal BOPP film typically involves several steps:

 * Extrusion: Raw polypropylene resin and other additives are melted and extruded through a flat die to form a thick sheet.

 * Machine Direction Orientation (MDO): The sheet is then heated and stretched in the machine direction (longitudinally) over a series of rollers.

 * Transverse Direction Orientation (TDO): The film then enters a "tenter frame" where it is heated again and stretched in the transverse direction (crosswise). This is often where the co-extruded sealant layers are applied or become integrated.

 * Corona Treatment (Optional): One or both surfaces may be treated with a corona discharge to enhance surface energy, improving ink adhesion for printing and lamination.

 * Winding: The finished BOPP film is wound onto large rolls, which are then slit into smaller rolls according to customer specifications.

Common Applications:

Heatseal BOPP film is a staple in the packaging industry due to its versatility and performance:

 * Food Packaging: Snacks (chips, biscuits), baked goods, confectionery (candy, chewing gum), fresh produce, frozen foods, tea and coffee, ready-to-eat meals.

 * Non-Food Packaging: Cigarette cases, envelopes, cosmetics, personal care products, stationery, industrial goods, pharmaceutical packaging (tablets, capsules), electronics packaging, flower sleeves.

 * Laminating: Can be laminated onto other materials like paper or cardboard to create stronger, moisture-resistant packaging or displays.

 * Pouches and Lids: Used for creating resealable pouches and lidding films for various containers.

In summary, heatseal BOPP film is a high-performance packaging material known for its secure sealing capabilities, excellent clarity, strength, and barrier properties, making it an indispensable choice for a wide range of consumer and industrial applications.
